Mineral Separator Gold Flotation Machine
  • Mineral Separator Gold Flotation Machine
  • Mineral Separator Gold Flotation Machine
  • Mineral Separator Gold Flotation Machine
  • Mineral Separator Gold Flotation Machine
  • Mineral Separator Gold Flotation Machine
  • Mineral Separator Gold Flotation Machine
Unit Price: 2000~8000 USD
Min. Order: 1 Piece/Pieces
Basic Info
Product Description

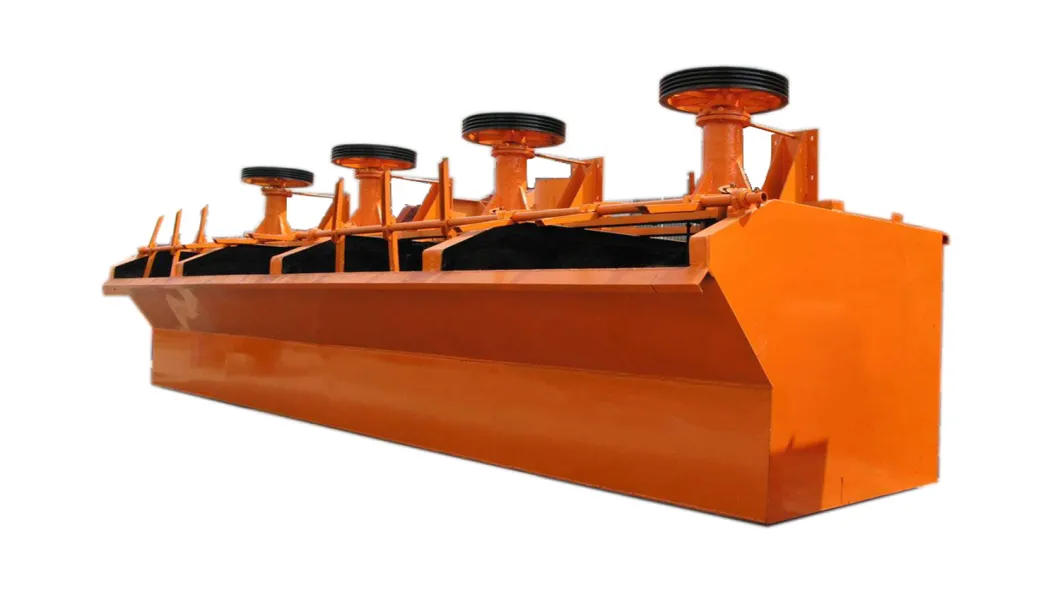

Mineral Separator Gold Flotation Machine

SF type mechanical agitating flotation machine can be widely used in ferrous metal minerals such as iron, rough selection, selection, sweeping and reverse flotation of non-ferrous metals and non-metallic minerals such as copper, lead, zinc, antimony, molybdenum and gold. However, it is not suitable for rough selection and sweeping operations in large flotation plants.


Mineral Separator Gold Flotation Machine

Features
1.Large air suction volume, low power consumption;
2.The long service life of wear parts Each tank with air suction, slurry suction and flotation function does not need any accessory equipment to form flotation circle, which is convenient for process flow changing;
3.The reasonable slurry circulation minimizes coarse sand sediments, and is conducive to flotation of a coarse particle;
4.The auto-control device of slurry volume, convenient adjustment ;
5.Impeller with backward style upper and lower leaf, the upper blade generates upper circulation; the lower blade generates lower circulation.
6.Mechanical stirring, self- air suction, self-slurry suction
7.SF flotation cell is composed flotation cell unit with JJF flotation cell as the suction tank of every operation.

Specification
ModelEffective volume(m³)Capacity (m³/min)Impeller diameter (mm)Impeller speed (r/min)Motor power for agitation (kw)Motor power for scraper (kw)Single tank weight (kg)
SF-0.370.370.2~0.4300352~4421.50.75470
SF-0.70.70.3~1.035040031.1970
SF-1.21.20.6~1.24503125.51.11400
SF-2.82.81.5~3.5550268111.52242
SF-442.0~4650235151.52600
SF-884.0~8760191301.54292
SF-16165.0~16850169~193451.57415
SF-20205.0~2076018630×21.59823

Mineral Separator Gold Flotation MachineMineral Separator Gold Flotation Machine
SF flotation cell adopts creative forward tank, double side blades of water wheels, draft tube and the false bottom device. The slurry in tank takes upper and lower circulation according to the fixed flow mode, which is conducive to the suspension of coarse particle.
Mineral Separator Gold Flotation Machine

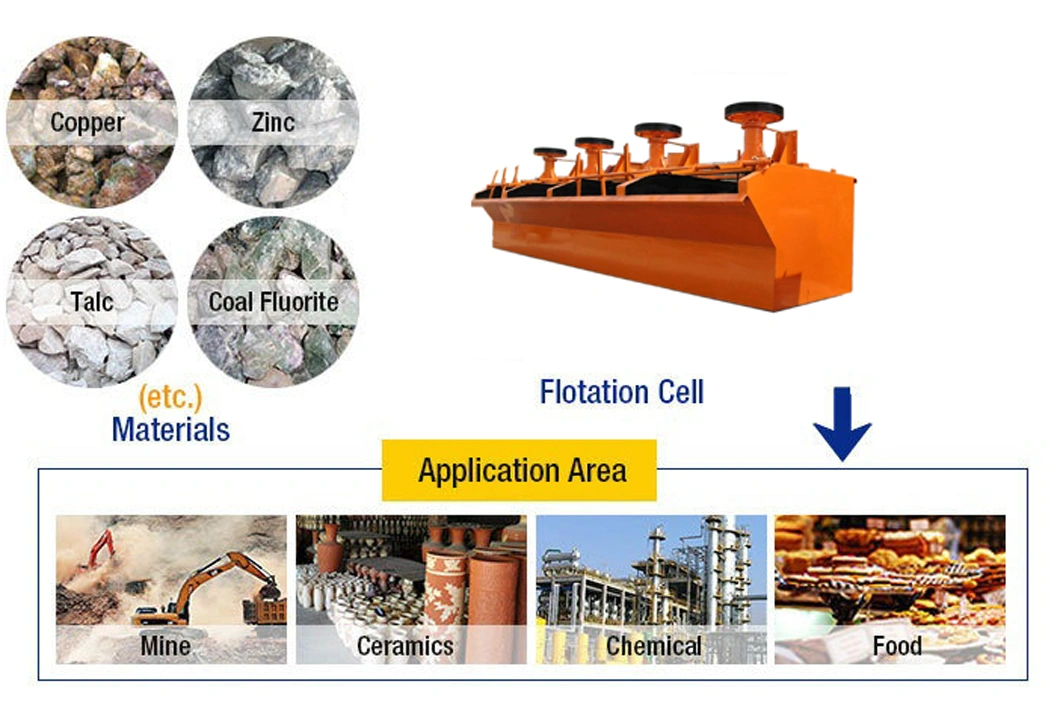

It is mainly used to select non ferrous metals such as copper, zinc, lead, nickel, gold, etc., and  also be used for coarse selection and selection of black metal and nonmetal.

Mineral Separator Gold Flotation Machine
Mineral Separator Gold Flotation MachineMineral Separator Gold Flotation MachineMineral Separator Gold Flotation Machine
