Gold Separation Shaking Table with High Efficiency
  • Gold Separation Shaking Table with High Efficiency
  • Gold Separation Shaking Table with High Efficiency
  • Gold Separation Shaking Table with High Efficiency
  • Gold Separation Shaking Table with High Efficiency
  • Gold Separation Shaking Table with High Efficiency
  • Gold Separation Shaking Table with High Efficiency
Unit Price: 5000~10000 USD
Min. Order: 1 Piece/Pieces
Basic Info
Product Description
Gold Separation Shaking Table with High Efficiency
Gold Separation Shaking Table with High Efficiency

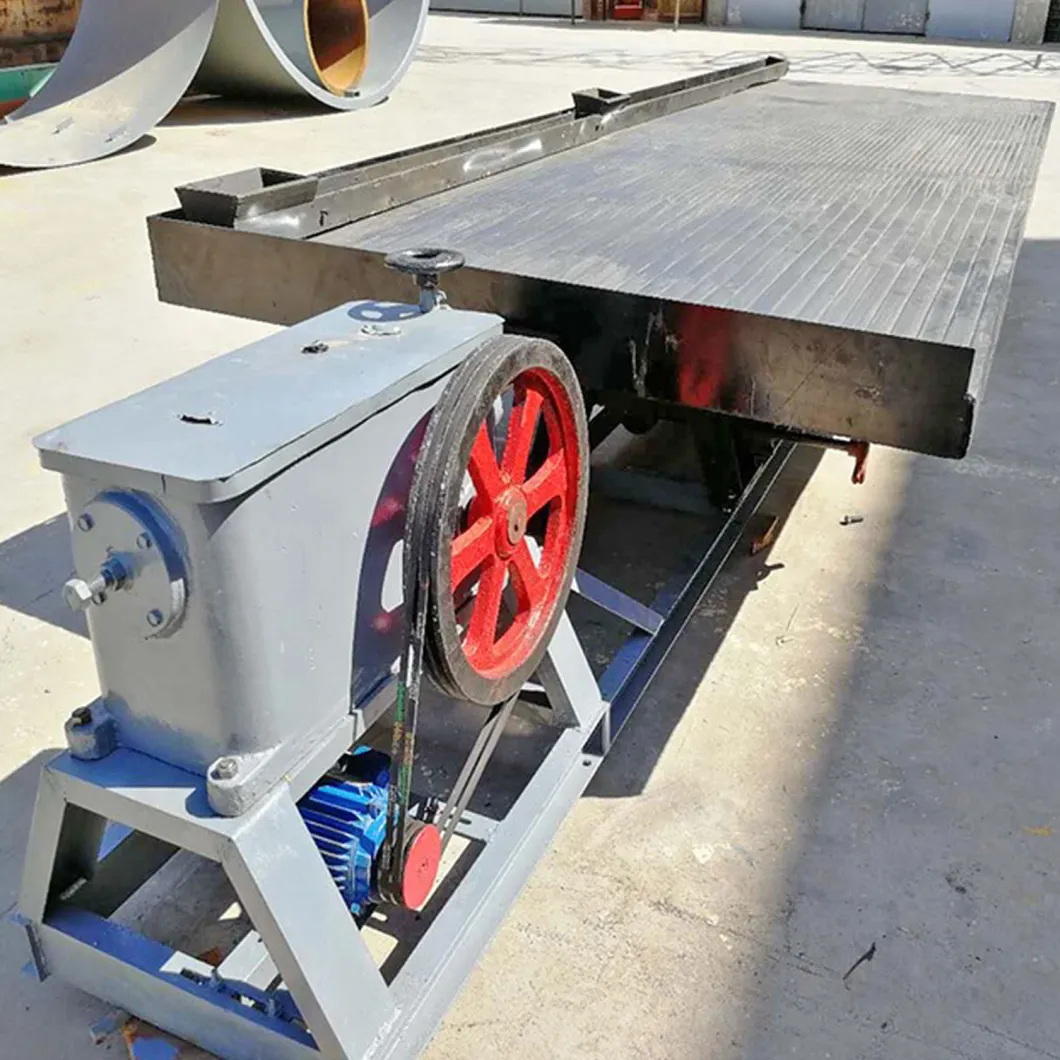

The cam lever type head is adopted; the stroke is adjusted by changing the position of sliding head on rocker arm; jig frequency is controlled by the smoothing motor pulley.
Gold Separation Shaking Table with High EfficiencyGold Separation Shaking Table with High Efficiency
Feeding Size: 0-3mm
Output Size: 0-3mm
Processing Capacity: 0.1-1.8t/h
Separation Method: Gravity Separation

Features

1. The large range of transverse slope adjustment (0~10°),adjustable stroke;
2. Keep the stable operation when changing the transverse slope and stroke;
3. Spring is arranged in the case with compact structure;
4. Without reagents consumption, little electricity consumption.


Specification

ModelStroke (mm)Washing times (r/min)Transverse angleFeed particle size (mm)Feed density (%)Measure of cleaning water (t/h)Size (mm)Motor Model & Power (kw)Output (t/h)Weight (kg)
LY-4500×1800N:8~16
S:18~24
250,3500~8°N<0.074
S<3
15~3050~1504532×1832Y100L-61.50.3~0.51326
LY-2100×105012~18250,350, 4500~8°Mineral slime -2-0.1Mineral slime -0.110~3050~1502100×1050/850Y90L-61.10.3~0.5450
    Gold Separation Shaking Table with High EfficiencyThe working principle of the gold concentrating table (shaking table) is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.
    Gold Separation Shaking Table with High EfficiencyGold Separation Shaking Table with High Efficiency
    The shaking tables are widely used to separate tungsten, tin, tantalum, niobium, gold and other rare and precious metals. In the production of small, medium or large scale Mineral Processing plants, it is also adopted for different processing section such as roughing, cleaning and scavenging the different particle size of coarse sands (2-0.5mm), fine sands (0.5-0.074mm), slimes (-0.074mm) and so on. The shaking tables separate minerals of iron, manganese ore or coal also. The effective recovery particle size range is 2-0.22 mm when the shaking tables separate tungsten and tin.Gold Separation Shaking Table with High Efficiency

    Gold Separation Shaking Table with High Efficiency
